Saunum Air 10, 9.6kW Sauna Heater Package

All Features:

Air 10 Sauna Heater

• Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen are felt head to toe.
• European Design – With an elegant stainless steel finish, Saunum combines Scandinavian design and quality materials.

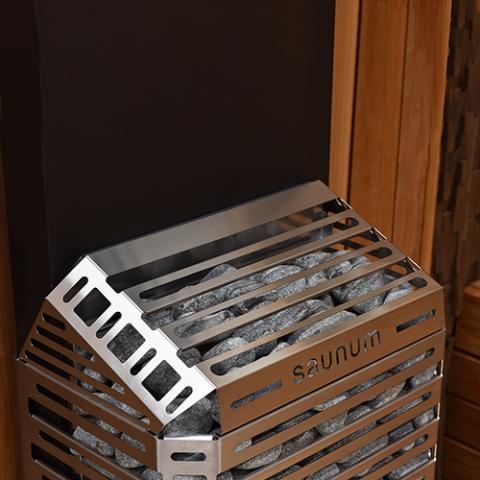

• Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 132 pound stone capacity.
• Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits.
• Wi-Fi Control – The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
• Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.

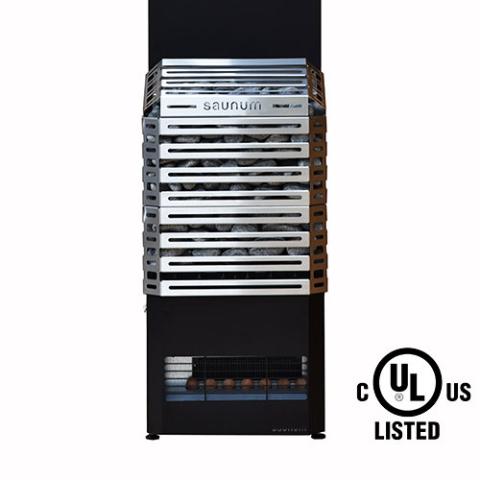

• UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
• Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
• For sauna rooms from 282 to 424 cu. ft.

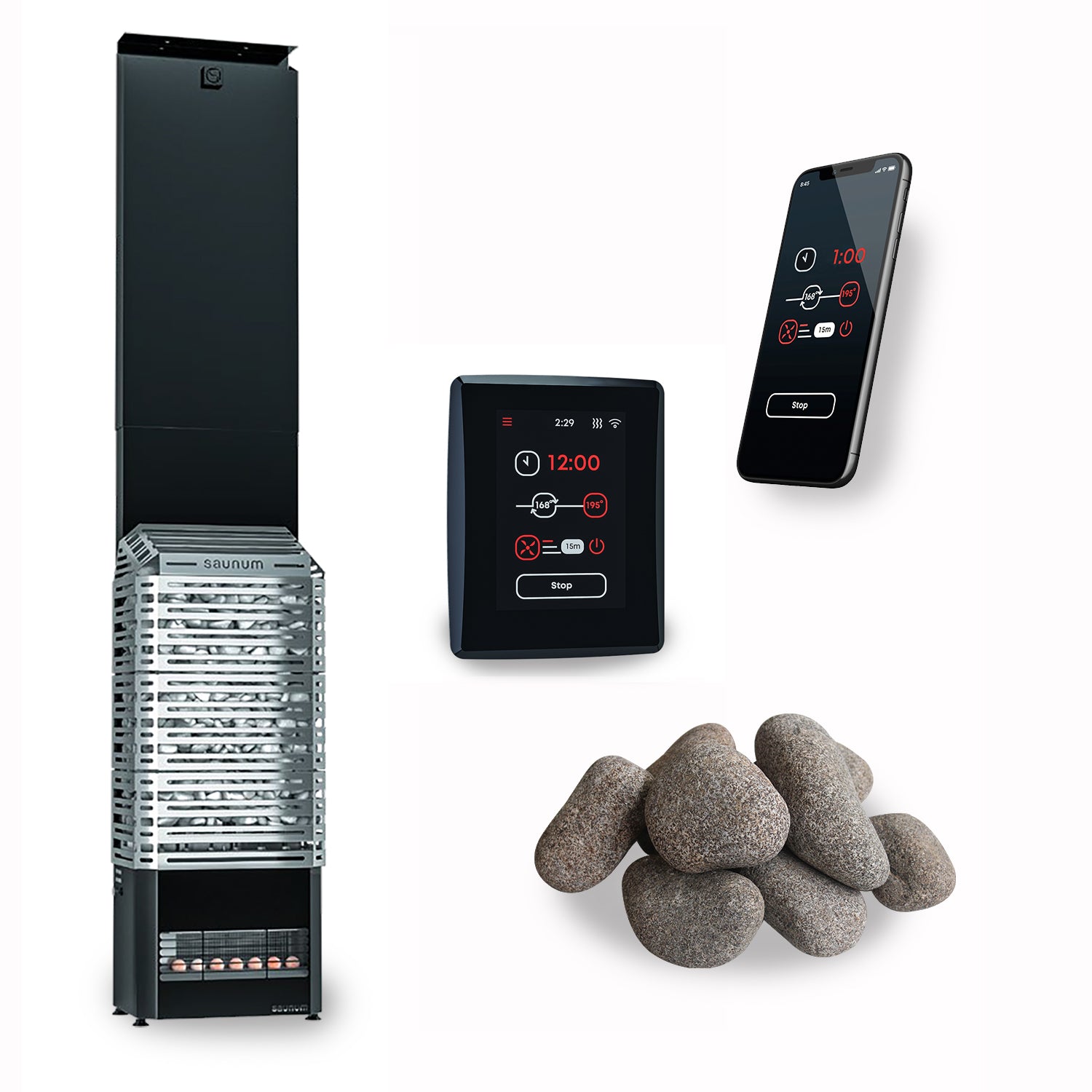

AirIQ Wi-Fi Control

• Temperature selection ranges from 104°F - 194°F (40°C - 90°C)
• Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
• Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed
• Classic Nordic Steam SaunaFor temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
• Humid Steam-Rich SaunaFor temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
• Mild, Relaxing SaunaFor temperatures from 104°F - 131°F  (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
• AirIQ Wi-Fi allows for sauna session scheduling for a specific day, time, and sauna type for the week
• Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play
• Modbus integration for smart home connection
• Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile appSauna is ReadyHeating StatusDoor is OpenOverheating Protection Applied
• Multi-language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian
• Outside sauna room installation
• Screen lock
• Child safety lock
• Temperature sensor
• Door sensor

Sauna Stones

• High-quality olivine diabase raw stone
• Rounded, pre-washed, and ready to use
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

Specifications:

Heat Equalizing System

Certification/Global Safety Rating: UL (Underwriters Laboratories)

Heat/Steam Equalizer Module: 3-Speeds, Whisper-Quiet Operation

Ceiling Hot Air Intake: 17.72" x 4" (450.09 x 101.6 mm)

Cool Air Intake Type: Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor

Cool Air Intake Size: 2" x 2.75" (50.8 x 69.85 mm)

Blended Air Output: 4.31" x 14.13" (109.47 x 358.90 mm)

Himalayan Salt and Aroma Tray Type: Removable, Slotted

Himalayan Salt and Aroma Tray Size: 16.5" x 4.5" (419.1 x 111.76 mm)

Sauna Heater System

Certification/Global Safety Rating: UL (Underwriters Laboratories)

Heater Body Style: Stainless Steel

Heating Elements: Incoloy (Stainless Steel)

Heating Element Protection: Air Tunnels, Slotted Stainless Steel, Three

Room Size: 282 - 424 (8-12 Cubic Meters)

Wattage Rating: 9600

Operating Voltage: 240VAC

Phase: Single

Amperage: 40.83

Weight: 115 lbs (52 kg)

Shipping Weight with Stones: 247 lbs (112 kg)

Width: 18.31" (465 mm)

Depth: 12.41" (315.3 mm)

Height: 80.54 - 94.49" (2045.71-2400.04 mm)

Minimum Ceiling Height: 80.54" (2045.71 mm)

Stone Capacity: 132 lbs (60 kg)

Stone Size: 2" to 4" (5-10 cm)

Circuit Breaker: 50 Amp

Wire Size to Power Unit: (2) #6 +N + G

Wire Size - Power Unit to Elements: 7-Conductor Cable, #14AWG , 90-Degree C, 5' (152.4 cm)

Wire Size - Power Unit to Heat Equalizer: 5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm)

Room Temperature Sensor: Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)

Display Panel: Model AIRIQ WI-FI

Certification/Global Safety Rating: UL (Underwriters Laboratories)

Type: Digital, Soft-Touch

Response: Tactile with Haptic Feedback Technology

Language Selection: 16-Languages

Wi-Fi Capability: Wi-Fi, App-Based Updates, and Operation

Notifications: Sauna is Ready, Heater Status, Open Door, and Overheating Protection

Safety Features: Admin, Screen Lock, Door Sensor, and Overheat Protection

Color: Nordic Black

Heat Equalizing Control: 3-Speed Adjustability

Width: 3.3" (83.82 mm)

Depth: .8" (20.32 mm)

Height: 4.1" (104.14 mm)

IP Rating: IP20

Minimum Temperature Setting: 104-Degrees Fahrenheit (40-Celcius)

Maximum Temperature Setting: 194-Degrees Fahrenheit (90-Celcius)

Duration Timer: 1 - 6 Hours

Display Panel Cable: 4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm)

Door Sensor and Cable Assembly: 2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm)

Door Sensor Probe: 1" Long and .24" Diameter (25 x 6 mm)

Operating Temperature Range: -4 - 145-Degrees Fahrenheit (-20 - 62 Celsius)

Programmability: Weekly Scheduling with Three Programmable Sessions

Temperature Settings: Fahrenheit or Celsius

Region Settings: North American and European Versions

Room Temperature Sensor: Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)
