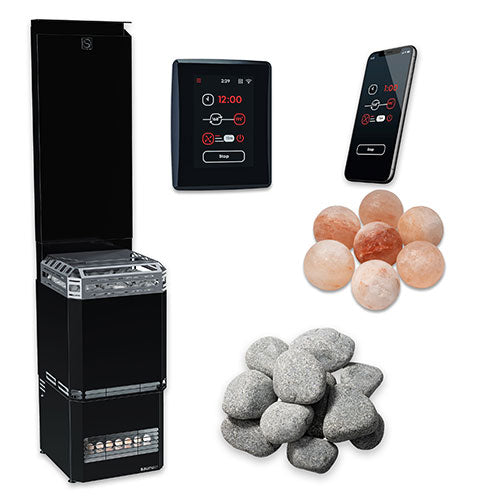

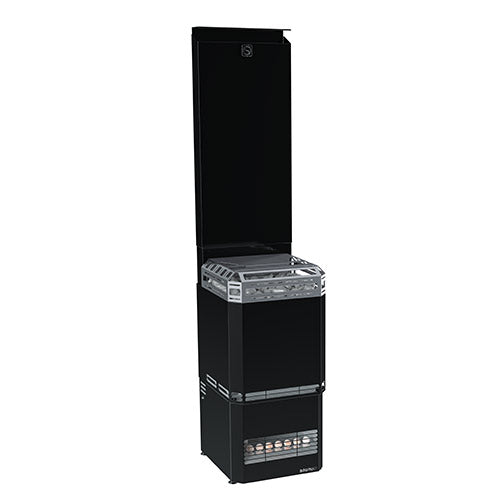

Saunum Air L 13, 13kW Sauna Heater Package

All Features:

Air L 13 Sauna Heater

• Revolutionary Air Mixing Technology – No more cold feet! No other sauna heater has Saunum's patented air blending system, which mixes cooler, oxygen-rich air from the floor with hot, oxygen-poor air off the ceiling and distributes it throughout the room for a more even temperature and better breathability. Saunum ensures that heat and oxygen are more consistent from head to toe.
• Scandinavian Design – With its elegant black steel finish, Saunum combines contemporary Scandinavian design and premium-quality materials.

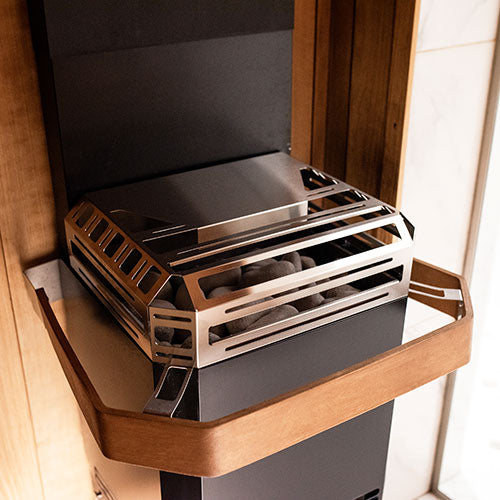

• Massive Stone Capacity – Stones are the heart of a Nordic sauna. Greater stone capacity results in softer, more even heat, and can produce more luxurious steam. The Air L boasts a massive 198 pound stone capacity.

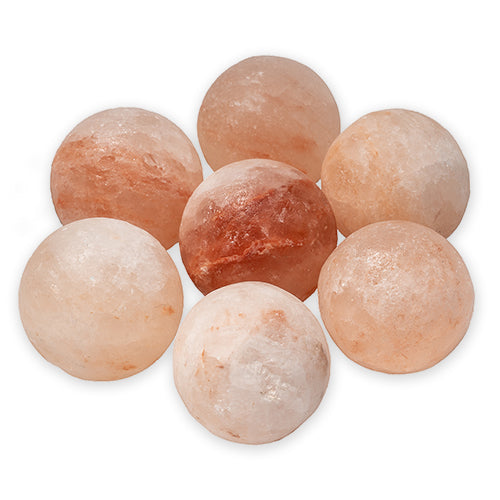

• Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
• Wi-Fi Control – The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
• Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.

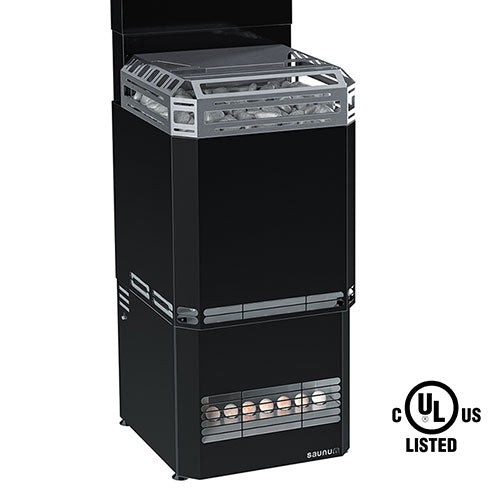

• UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
• Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
• For sauna rooms from 317 to 565 cu. ft.

AirIQ Wi-Fi Control

• Temperature selection ranges from 104°F - 194°F (40°C - 90°C)
• Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
• Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed
• Classic Nordic Steam SaunaFor temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
• Humid Steam-Rich SaunaFor temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
• Mild, Relaxing SaunaFor temperatures from 104°F - 131°F  (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
• AirIQ Wi-Fi allows for sauna session scheduling for a specific day, time, and sauna type for the week
• Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play
• Modbus integration for smart home connection
• Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile appSauna is ReadyHeating StatusDoor is OpenOverheating Protection Applied
• Multi-language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian
• Outside sauna room installation
• Screen lock
• Child safety lock
• Temperature sensor
• Door sensor

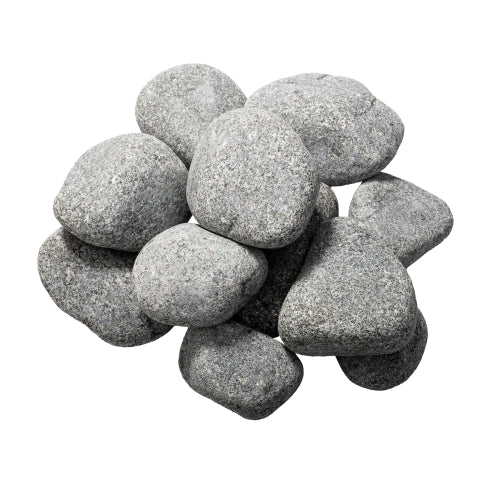

Sauna Stones

• High-quality olivine diabase raw stone
• Rounded, pre-washed, and ready to use
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

Specifications:

Heat Equalizing System

Certification/Global Safety Rating: UL (Underwriters Laboratories)

Heat/Steam Equalizer Module: 3-Speeds, Whisper-Quiet Operation

Ceiling Hot Air Intake: 17.72" x 4" (450.09 x 101.6mm)

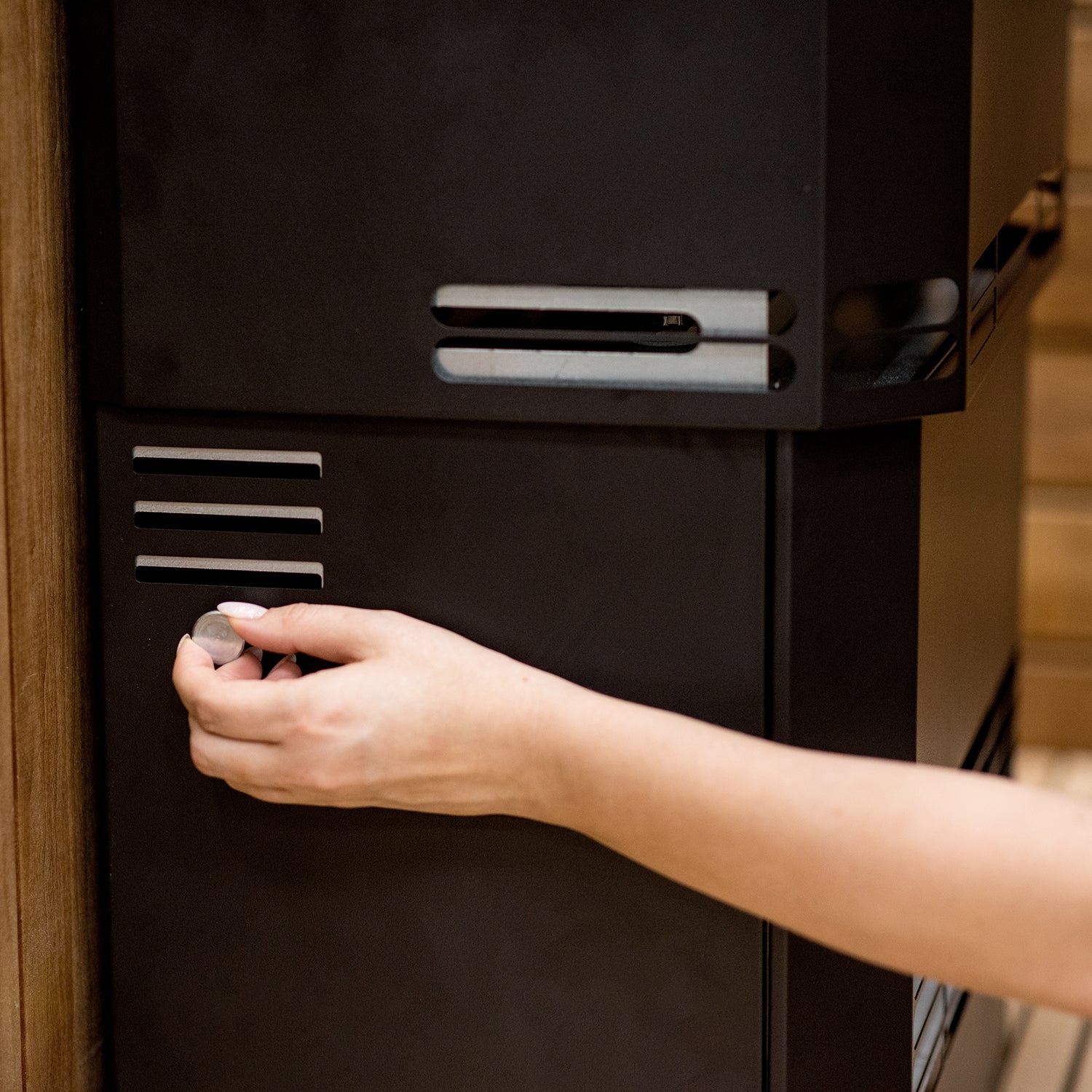

Cool Air Intake Type: Adjustable Valve, Side-Mounted, 12" (304.8mm) Off Floor

Cool Air Intake Size: 2" x 2.75" (50.8 x 69.85mm)

Blended Air Output: 4.31" x 14.13" (109.47 x 358.9mm)

Himalayan Salt and Aroma Tray Type: Removable, Slotted

Himalayan Salt and Aroma Tray Size: 16.5" x 4.5" (419.1 x 111.76mm)

Sauna Heater System

Certification/Global Safety Rating: UL (Underwriters Laboratories)

Room Size: 317-565 cu.ft.

Wattage Rating: 13000

Operating Voltage: 240V

Phase: Single

Amperage: 54A

Circuit Breaker: 70A

Wire Size to Power Unit: (2) #6 + N + G

Minimum Ceiling Height: 79" (2007mm)

Stone Capacity: 198 lbs (90 kg)

Stone Size: 2" - 4" (5-10 cm)

Heater Width: 19" (483mm)

Heater Depth: 18.1" (460mm)

Heater Height (Including Telescopic Air Intake): 72.25-95" (1850-2400mm)

Heater Weight: 147 lbs (67 kg)

Shipping Weight with Stones: 345 lbs (157 kg)

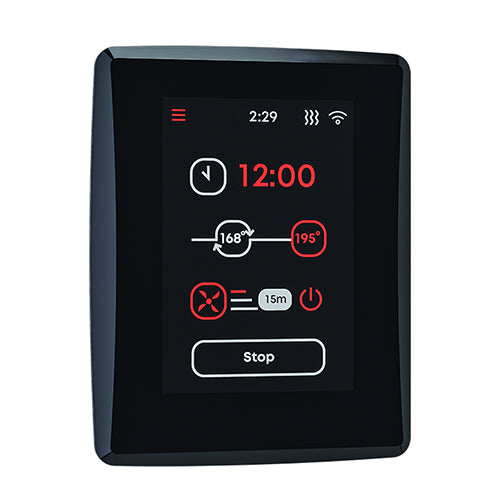

Display Panel

Model: AIRIQ WI-FI

Certification/Global Safety Rating: UL (Underwriters Laboratories)

Type: Digital, Soft-Touch

Response: Tactile with Haptic Feedback Technology

Language Selection: 16-Languages

Wi-Fi Capability: Wi-Fi, App-Based Updates, and Operation

Notifications: Sauna is Ready, Heater Status, Open Door, and Overheating Protection

Safety Features: Admin, Screen Lock, Door Sensor, and Overheating Protection

Color: Nordic Black

Heat Equalizing Control: 3-Speed Adjustability

Width: 3.3" (83.82mm)

Depth: .8" (20.32mm)

Height: 4.1" (104.14mm)

IP Rating: IP20

Minimum Temperature Setting: 104°F (40°C)

Maximum Temperature Setting: 194°F (90°C)

Duration Timer: 1 - 6 Hours

Display Panel Cable: 4-Conductor Cable (150°C), 20AWG, 15' (475.2 cm)

Door Sensor and Cable Assembly (Included with Heater): 2-Conductor Cable (150°), 20AWG, 9.83' (299.62 cm)

Door Sensor Probe: 1"L x .24"Diameter (25 x 6mm)

Operating Temperature Range: -4 - 145°F (-20 - 62°C)

Programmability: Weekly Scheduling with 3 Programmable Sessions

Temperature Settings: Fahrenheit or Celsius

Region Settings: North American and European Versions

Room Temperature Sensor (Included with Heater): Pre-Mounted with Integrated Cable (150°C), 9.5' (289.56 cm)

*All Sauna heaters must be connected by a qualified electrician — and we can help arrange one if needed.
